Lists
Work orders are listed.

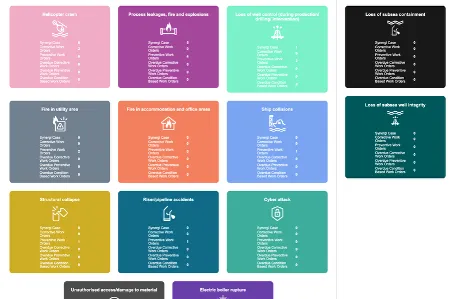

Major Accident Hazards (MAH)
View all Major Accident Hazards that are relevant to your facility/asset. Hazards will typically be grouped by area categories that they affect, for example: categories could be Asset Areas and Subsea Areas. Under each Hazard different work orders will be listed.
Interface components
Section titled “Interface components”Hierarchial Scoring Tables
Barrier overview in a nested tabular format.
Trends/Charts
Visual history of impairments over time.

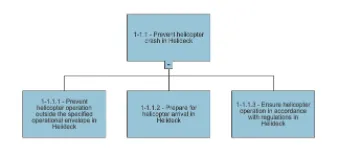

Bowtie Tree view
Bowtie represenation of the protection status.
Sunburst Display
Display barrier overview in a sunburst display format.
Navigation
Section titled “Navigation”Drill down to Individual Major Accident Hazards by selecting one from the landing MAH page.
You can then navigate between hazards.
Example layout:
Section titled “Example layout:”In this example the layout Is very similar to the areas page layout. Refer to Areas section.
